When planning a renovation, tenant improvement, commercial build-out, or other construction project, the framing system is one of the first parts of the work that needs to be considered. It establishes the shape and layout of walls and partitions and provides the base for other components of the assembly.
Steel stud framing in Vancouver is used for a range of interior construction applications, particularly where metal framing is specified for partitions, walls, bulkheads, and other assemblies. Steel studs are manufactured from cold-formed steel and are available in different sizes and thicknesses to suit the requirements of a particular wall system.
For property owners, builders, and contractors, the right framing choice depends on more than the material itself. The wall height, loads, openings, fire-resistance requirements, acoustic performance, insulation, finishes, and project drawings all need to be considered before installation begins.

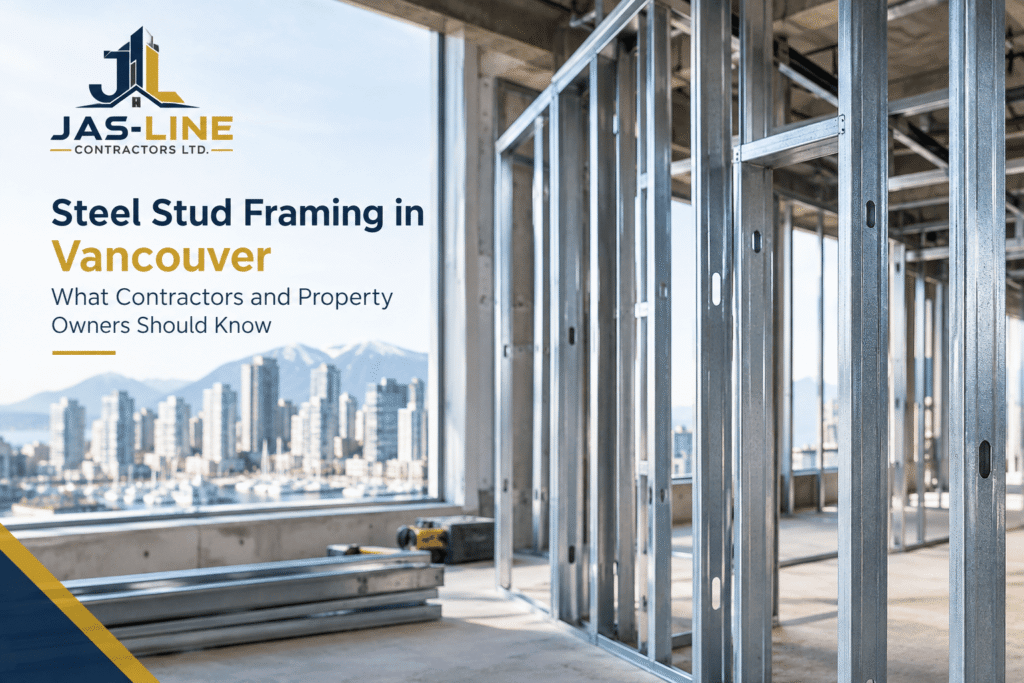

What is Steel Stud Framing?
Steel stud framing uses vertical steel studs together with horizontal tracks, sometimes referred to as runners, to form a wall or partition framework. Drywall or other specified materials can then be attached to the completed framing.
The term metal stud framing in Vancouver is often used interchangeably with steel stud framing when referring to these interior systems. Depending on the project, steel framing may be used for non-loadbearing interior partitions or for applications that have been specifically designed to carry the required loads.
The required framing size, thickness, spacing, connections, and installation method should come from the project design and applicable requirements rather than from a general rule that applies to every wall.
For example, the BC Building Code includes specific provisions for steel studs and runners, including requirements concerning minimum metal thicknesses, certain fire-separation openings, exterior non-loadbearing walls, and installation.
Why is Steel Stud Framing Used in Vancouver Construction?
There is no single reason why a project may use steel framing. The choice usually comes from the requirements of the particular building and wall assembly.
Consistent dimensions
Steel studs are manufactured to defined dimensions. When properly installed, this can provide a consistent framework for drywall and other finish materials.
Dimensional stability
Unlike wood, steel does not shrink or twist in the same manner as lumber. That characteristic can be useful where maintaining consistent wall geometry is part of the construction requirements.
Suitable for interior partitions
Steel studs are commonly used for interior partitions, commercial tenant improvements, office layouts, bulkheads, and similar construction work.
Coordination with other trades
Framing is only one part of a completed wall. Electrical and mechanical services, insulation, drywall, doors, backing, and firestopping may all need to be coordinated with the framing layout.
A well-planned sequence helps avoid having to modify completed framing later.
Flexible interior layouts
Steel framing can be used to create a variety of partition layouts. This makes it suitable for many renovation and commercial interior projects where rooms or work areas are being divided or reconfigured.
📞 Call us or Contact Us today.
Steel Stud Framing in Vancouver: What Should be Considered?
There is more to steel stud framing in Vancouver than selecting a stud size and installing it at a standard spacing.
The framing needs to form part of the complete wall assembly. Before work starts, the project team should review factors such as:
- Wall height and configuration
- Stud size and metal thickness
- Stud spacing
- Door and other openings
- Loads and required reinforcement
- Drywall type and thickness
- Insulation requirements
- Acoustic requirements
- Fire-resistance requirements
- Electrical and mechanical penetrations
- Backing for cabinets, fixtures, and equipment
- Floor and ceiling conditions
- Connection details
- Applicable code and project requirements
The BC Building Code has specific requirements for steel-stud applications. For example, Part 9 includes provisions dealing with stud thickness, runners, openings in fire separations, and installation. The exact requirement depends on the application and assembly.
For projects in the City of Vancouver, the applicable Vancouver Building By-law also needs to be considered. The City currently publishes the 2025 VBBL and explains that Vancouver has authority under the Vancouver Charter to establish its own building regulations.
That is why project-specific drawings, specifications, and applicable code requirements should be reviewed rather than relying on a generic framing detail.
Commercial Steel Stud Framing in Vancouver
Commercial steel stud framing in Vancouver can be used in offices, retail spaces, tenant improvements, institutional interiors, multi-unit residential projects, and other commercial construction settings.
A commercial project may contain several different wall assemblies within the same building. One area might require a standard partition, while another could require acoustic treatment, additional backing, a fire-resistance rating, or a particular shaft-wall system.
These requirements affect how the framing is installed.
A steel framing contractor in Vancouver may also need to coordinate the framing work with the general contractor, architect, engineer, drywall crew, electricians, plumbers, mechanical trades, insulation installers, and firestopping contractors.
This coordination is especially relevant around doors, service penetrations, bulkheads, equipment, and locations where wall assemblies change.
Residential Steel Stud Framing in Vancouver
Residential steel stud framing in Vancouver can be suitable for certain residential applications, depending on the design and construction requirements.
It may be considered for interior partitions, renovations, basement improvements, multi-unit residential buildings, and other projects where steel framing is specified.
However, steel framing is not automatically the right choice for every residential wall. The appropriate system depends on factors such as wall height, loading, fire performance, acoustic requirements, moisture conditions, finishes, and how the wall connects to the surrounding structure.
A property owner considering steel framing should discuss the proposed application with the project designer and an experienced steel stud contractor in Vancouver before deciding on a particular system.
Steel Stud Framing vs. Wood Framing
Steel and wood framing serve different construction needs, and neither material is automatically the right choice for every project.
Steel framing offers consistent manufactured dimensions and does not experience the same type of shrinkage and warping associated with wood framing. It may also form part of assemblies where non-combustible components are required.
Wood framing remains widely used, particularly in residential construction, and can be appropriate for many conventional applications.
The decision should be based on the project drawings, specifications, structural requirements, applicable building regulations, construction sequence, and coordination with other trades.
Rather than choosing a material based only on general advantages, it is better to look at the requirements of the complete wall assembly.
Steel Stud Wall Framing and Drywall
Steel stud wall framing in Vancouver is often closely connected with drywall installation.
Once the framing has been laid out and installed, other components of the wall can be incorporated according to the project design. Depending on the assembly, this can include insulation, services, vapour-control components where required, gypsum board, backing, and other materials.
The accuracy of the framing provides the foundation for the work that follows. Wall locations, alignment, openings, and framing around doors and other features all need to be addressed before drywall installation progresses.
This is particularly relevant when the framing and drywall scopes are being completed as part of the same construction project.
Fire and Acoustic Considerations
Some walls are designed to provide a specified level of fire resistance or acoustic performance.
These characteristics come from the complete wall assembly, not simply from the steel studs. The framing, gypsum board, insulation, fasteners, joints, penetrations, and other components may all contribute to the required performance.
For a fire-rated assembly, penetrations and other details need to be handled according to the applicable tested or specified assembly. The BC Building Code includes requirements for fire separations and steel framing used in certain fire-rated walls.
Acoustic performance also depends on the complete assembly. Insulation, board layers, resilient components, sealing, framing configuration, and other details can all influence how a wall performs.
For that reason, changing one component of a specified wall system without checking the complete assembly can create problems.
How Steel Stud Framing is Installed
The exact installation process varies according to the project, but a typical interior framing sequence may include several stages.
1. Review the drawings
The framing layout, wall types, openings, dimensions, and other project requirements are reviewed before installation.
2. Establish the layout
Wall locations are marked on the floor and coordinated with the surrounding construction. Door openings, intersections, and other details need to be considered at this stage.
3. Install the tracks or runners
Horizontal tracks are installed at the required floor and ceiling locations according to the project details.
4. Install the studs
Vertical studs are positioned according to the specified size and spacing. Framing around openings and locations requiring reinforcement or backing needs to follow the project requirements.
5. Coordinate services and wall components
Electrical, mechanical, plumbing, insulation, firestopping, and other work may need to be coordinated before the wall is closed.
6. Prepare for drywall and finishes
Once the framing and required inspections or coordination are complete, the wall can proceed to the next stages of construction.
The BC Building Code contains specific installation provisions for certain steel-stud applications, including requirements relating to runners, fire-rated walls, stud orientation, openings, and attachment.
Common Steel Stud Framing Problems
Many framing problems can be avoided through good planning and coordination.
Incorrect stud size or thickness
A stud should not be selected simply because it is commonly used on another project. The required size and thickness depend on the particular application.
Poor layout
Incorrect wall locations or dimensions can create problems for doors, ceilings, millwork, services, and adjacent walls.
Insufficient reinforcement
Some locations require additional framing or backing for doors, fixtures, cabinets, equipment, or other loads.
Poor coordination around services
Electrical, plumbing, and mechanical services need to be considered before the wall is closed. Unplanned penetrations can create additional work and may affect fire or acoustic assemblies.
Treating every wall as the same
A standard partition, acoustic wall, fire-rated wall, and shaft-wall assembly may have very different requirements. Using one framing approach for all of them can lead to problems.
When Should you hire Steel Stud Framing Contractors?
A qualified steel stud framing contractor in Vancouver can be useful when a project involves detailed interior framing, commercial partitions, tenant improvements, multiple wall types, or coordination with several trades.
When comparing steel stud framing contractors Vancouver, look at whether they have experience with projects similar to yours and whether they are comfortable working from architectural drawings, construction details, and specifications.
For larger construction projects, framing also needs to fit into the overall schedule. The work may need to be coordinated with drywall, insulation, mechanical, electrical, plumbing, and firestopping trades.
If you are searching online for steel stud framers near me, location should not be the only consideration. Ask about the contractor’s relevant experience, scope of work, approach to coordination, and familiarity with the type of wall systems included in your project.
📞 Call us or Contact Us today.
What to Look for in a Steel Framing Contractor
Before hiring a metal framing contractor in Vancouver, consider the following:
Relevant experience
Ask whether the contractor has worked on similar residential, commercial, renovation, or tenant-improvement projects.
Ability to work from drawings
Steel framing needs to follow the project design. The contractor should be able to interpret framing layouts, wall details, openings, and related construction information.
Coordination with other trades
Good framing coordination can reduce conflicts with electrical, plumbing, mechanical, insulation, drywall, and firestopping work.
Attention to layout and installation
Wall locations, openings, stud spacing, alignment, and reinforcement all affect the work that follows.
Site practices
Construction work also requires appropriate safety procedures, material handling, housekeeping, and coordination with other workers on site.
Clear scope
Before work begins, make sure the scope identifies what is included in the framing package and how it connects with the work of other trades.
Planning a Steel Stud Framing Project in Vancouver
A clear scope makes the framing stage easier to coordinate.
Start by identifying the areas that require steel framing. Then review the wall types, drawings, specifications, openings, backing requirements, and interfaces with other trades.
For renovation projects, existing conditions deserve particular attention. Existing walls, floors, ceilings, utilities, and other building components may differ from the original drawings or expectations.
A site review can help identify these conditions before framing begins.
For projects in Vancouver, it is also worth confirming which building regulations and permit requirements apply to the specific project. The City of Vancouver maintains its own Vancouver Building By-law, while the BC Building Code applies across the province subject to the applicable regulatory framework.
For technical code interpretation or design questions, the project should be reviewed by the appropriate qualified professional rather than relying on a general online article.
Frequently asked questions
1. Is steel stud framing suitable for residential projects?
It can be suitable for certain residential applications, including some interior partitions and renovation projects. The appropriate framing system depends on the project’s design, loads, wall assembly, fire and acoustic requirements, and applicable regulations.
2. Is steel stud framing commonly used for commercial interiors?
Steel framing is used for a range of commercial interior applications, including partitions, tenant improvements, office layouts, and other interior assemblies. The specific framing system depends on the project drawings and specifications.
3. Are steel studs better than wood studs?
There is no single answer for every project. Steel and wood have different characteristics and applications. The appropriate choice depends on the building design, wall requirements, construction method, and project specifications.
4. Does steel stud framing provide fire protection by itself?
No. Fire performance generally depends on the complete tested or specified wall assembly. The framing, gypsum board, insulation, fasteners, joints, penetrations, and other components may all form part of the required assembly.
5. What should I ask a steel stud framing contractor?
Ask about relevant project experience, the scope of work, ability to work from drawings and specifications, coordination with other trades, and how openings, backing, and different wall assemblies will be handled.
6. How can I find steel stud framers near me in Vancouver?
Start by looking for local contractors with experience in the type of project you are planning. Compare their relevant experience, scope, construction approach, and ability to coordinate with the other trades involved in the project rather than choosing based only on location.
Conclusion
Steel stud framing in Vancouver can be a practical option for a range of residential and commercial construction applications. Its manufactured dimensions and suitability for different interior wall systems make it useful for partitions, tenant improvements, renovations, and other projects where steel framing is specified.
The key is to treat framing as part of the complete construction assembly. Wall height, stud size and spacing, openings, reinforcement, drywall, insulation, fire performance, acoustic requirements, and coordination with other trades all need to work together.
For property owners and contractors, choosing the right steel stud framing contractor in Vancouver starts with understanding the project’s requirements and finding a contractor who can work from the relevant drawings and coordinate the framing with the rest of the build.
Jas-Line Contractors Ltd. provides steel stud framing as part of its broader construction services, alongside drywall, insulation, firestopping, painting, ACM panel installation, and construction clean-up.
